The Air Systems International CVF12A15KT and CVF12A25KT are premium, all-in-one confined space ventilation kits designed to provide maximum fresh air delivery without compromising worker access. Built around the powerful 12-inch CVF-12AC axial blower, these comprehensive systems feature the patented Saddle Vent® manhole ventilation device, allowing teams to continuous purge underground spaces while keeping the entry point completely clear and safe for entry and egress.
Available in either a 15-foot (CVF12A15KT) or 25-foot (CVF12A25KT) ducting configuration, these kits provide everything a contractor needs for immediate OSHA compliance in non-hazardous workspaces.
Kit Variations: Choose Your Length
• CVF12A15KT: Includes the 12" AC fan, a rugged poly storage canister, and 15 feet of flexible ducting paired with the Saddle Vent® system.
• CVF12A25KT: Includes the 12" AC fan, an extended poly storage canister, and 25 feet of flexible ducting paired with the Saddle Vent® system for deeper vaults and trenches.
•
Key Features & Benefits
• Patented Saddle Vent® Technology: The game-changing component of this kit. The low-profile Saddle Vent® drops directly into the manhole opening, taking up only 3 inches of space. Workers can easily climb in and out of the space without having to remove or crush the ventilation hose.
• Massive 12-Inch Air Purging Power: Driven by a robust 1 HP electric motor operating on standard 115 VAC power, the system delivers an incredible 2,348 CFM of free air to rapidly clear out stagnant heat, fumes, and stale air.
• All-In-One Organized Portability: The kit features a snap-lock poly canister that secures directly to the fan housing. It keeps your flexible ducting, 90-degree elbow, and mounting brackets neatly stored and protected from job site damage during transit.
• Built for Extreme Field Conditions: The fan, canister, and Saddle Vent® are constructed from high-impact, safety-orange polyethylene plastic that will never dent, rust, or corrode.
• Integrated GFCI Safety: Safety is paramount in the field. The blower comes standard with a built-in GFCI (Ground Fault Circuit Interrupter) plug to ensure safe operation in wet, damp, or unpredictable outdoor environments.
•
Product Specifications
• Manufacturer Part Numbers: CVF12A15KT (15 ft) / CVF12A25KT (25 ft)
• Blower Size: 12 inches (30.5 cm)
• Airflow Capacity: 2,348 CFM (Free Air) / 1,657 CFM (Through 15 ft duct with one 90° turn)
• Motor Specs: 1 HP, Continuous Duty, 115 VAC, 60 Hz, Single Phase
• Housing Material: High-Density Polyethylene (HDPE)

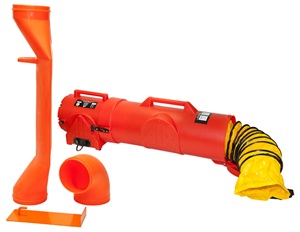

• Kit Components: 12" Axial Fan, Poly Canister with Ducting (15' or 25'), Conductive Saddle Vent®, 90-Degree Elbow, and Universal Manhole Mount.
• Safety Certifications: Blower is CSA C/US Certified for Outdoor Use
•
Ideal Applications
• Municipal utility manholes, underground vaults, and sewer systems
• Telecommunications and electrical trench work
• Non-hazardous industrial tank cleaning and vessel inspections
• Large-scale construction site cooling and continuous fresh air supply
