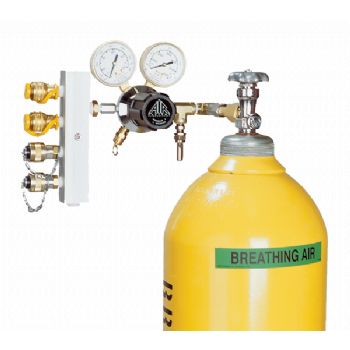

The Air Systems HP-CW1-346 and HP-CW1-347 family of products consists of 4-outlet high-pressure breathing air manifolds designed to safely regulate and distribute clean air to multiple workers from a single high-pressure source.
Product Overview
• Multi-User Design: Features a 4-outlet manifold assembly that lets up to four operators connect their airline respirators at the same time.
• Safety Alerts: Includes an integrated low-pressure alarm whistle (set at 500 PSI) and a safety relief valve to prevent over-pressurization and warn of low supply.
• Fittings: Available with customizable 1/4-inch Hansen or Schrader style quick-disconnect fittings.
• Dual Gauges: Equipped with dual pressure gauges for monitoring inlet and delivery pressure.
Key Differences by Model
HP-CW1-346 - Built with a 3000 PSI regulator and a CGA-346 connection for standard high-pressure air cylinders.
HP-CW1-347 - Built with a higher-capacity 5000 PSI regulator and a CGA-347 connection for higher-pressure breathing air systems.
