Twin-D Permanent Roof Anchor for Wood
Features
• Designed for installation under roof ridge cap
• Features 12" stainless steel nailing plate with 2-1/4" connecting D-rings.
• Includes 16D stainless steel nails for installation to wood roof structures
• Meets OSHA 1926.502 regulations
Material Specifications
Nailing PlatesStainless steel
D-ringsPlated alloy steel; 5,000 lb min. static strength
Performance Specifications
Static Strength5,000 lb min.
ANSI User Capacity130 to 310 lb max.
OSHA User Capacity130 to 425 lb max.

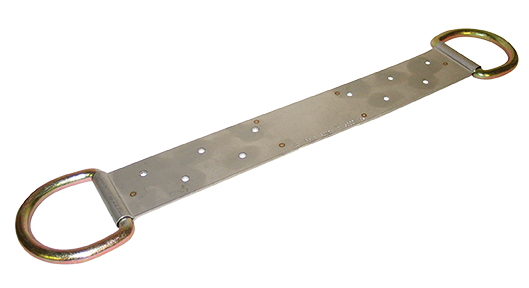

Product
FT7431
Description
Double D-ring; Permanent Roof Anchor with Stainless Steel Body; Fastens Under Shingles, Leaving D-rings Exposed for Attachment; 17" Including D-rings with 12" Nailing Surface.
Ea
46.00

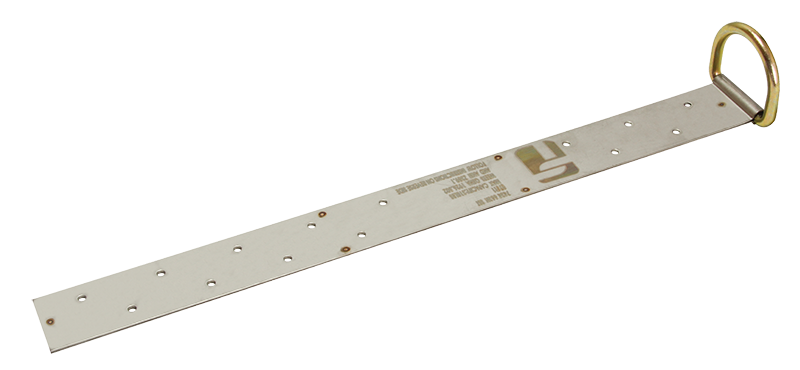

Product
FT7434
Description
Single D-ring, Permanent Roof Anchor with Stainless Steel Body; 19" Including D-ring with 17" Nailing Surface.
Ea
40.00
