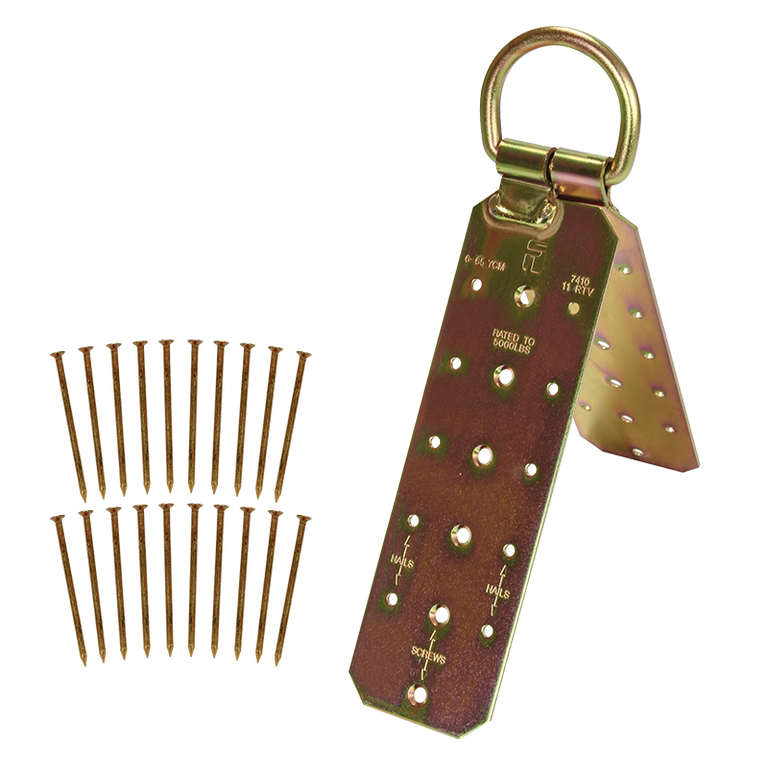

Temporary Reusable Roof Anchor

Hinged Reusable Wood Roof Ancho
Features
• Features 10" x 3" anchoring plates with 2-1/4" connecting D-ring
• Hinged design conforms to flat or sloped roofs up to 12/12 pitch.
• Includes 16D nails for roof ridge or field installation
• For temporary reusable installation on wood structures
• Meets OSHA 1926.502 regulations

Material Specifications
PlatesPlated alloy steel
D-ringPlated alloy steel; 5,000 lb min. static strength

Performance Specifications
Static Strength5,000 lb min.
ANSI User Capacity130 to 310 lb max.
OSHA User Capacity130 to 425 lb max.
