14" Trailing Beam Anchor with Dual-clamp Adjustment
Features
• Features aluminum crossbar and steel clamping jaws with nylon slider pads
• Fits beam flanges from 3" to 14" wide and up to 1-1/4" thick.
• Dual adjusting jaws include concealed locking latches
• Alloy steel D-ring remains centered on crossbar
• For temporary mobile use on horizontal I-beams
• Complies with ANSI Z359.18-2017
Material Specifications
D-ringPlated alloy steel; 5,000 lb min. static strength
CrossbarAluminum alloy
Clamp JawsPlated alloy steel
Performance Specifications
Static Strength5,000 lb min.
ANSI User Capacity130 to 310 lb max.
OSHA User Capacity130 to 425 lb max.
Product

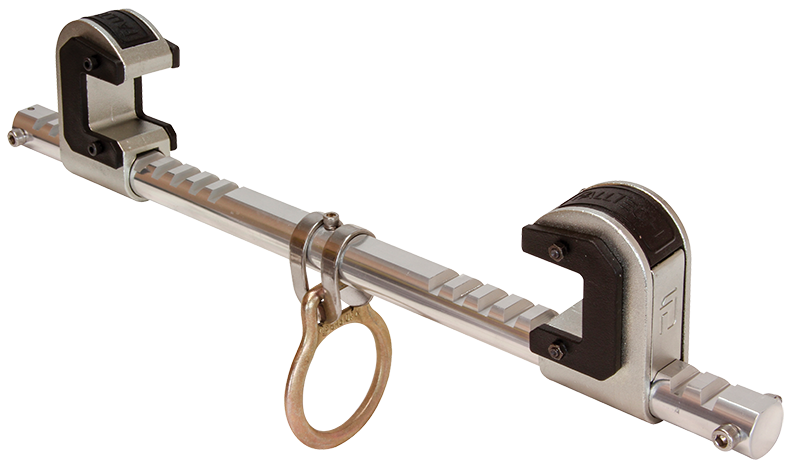

FT7530
Description
4” to 14” Dual Ratcheting for Centering on I-beam; Fits 4” to 14” Flange Width; Machined Aluminum Bar; Steel Jaws with Slider Pads.
Ea
299.50
Product

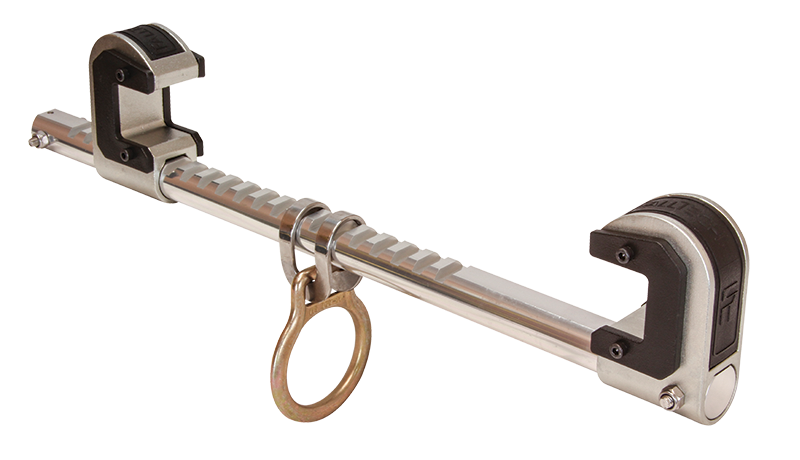

FT7531
Description
4” to 12” Single Ratcheting; Fits 4” to 12” Flange Width; Machined Aluminum Bar; Steel Jaws with Slider Pads.
Ea
290.50
Product
FT7533
Description
3.5” to 12” Dual Adjustment for Centering on I-beam; Fits 3.2” to 12” Flange Width; Aluminum Hex Bar and Jaws.
Ea
322.00
