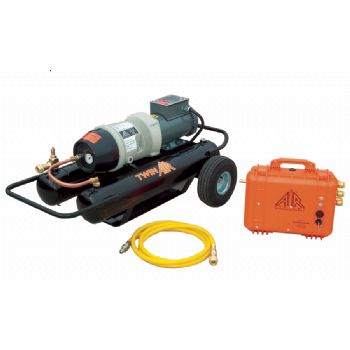

The Air Systems COMP-3 Breathing Air Compressor System is a continuous-duty portable package designed to supply clean Grade-D breathing air for up to three workers wearing pressure-demand respirators.
Product Overview
The system centers around the TA-3 Twin-Air™ Compressor, which utilizes dual ASME-coded receiver tanks that double as a structural frame. This tank setup naturally cools the compressed air to within 10 degrees of ambient temperature. It also includes the BB30-CO3 Breather Box® filtration package and a 1/2" x 10' connect hose with three respirator fittings.
Key Features & Specifications
• Capacity: Supports 1 to 3 workers using pressure-demand respirators.
• Motor: 2 HP, 1750 rpm continuous-duty electric motor with thermal protection.
• Power: 115/230 VAC, 1-phase, 60 Hz, 17.2 amps (requires 20-amp service).
• Output Pressure: Up to 110 psi.
• Air Storage: 8-gallon twin-air tank assembly providing 8.5 cfm air storage at 110 psi.
• Maintenance: Low upkeep with 500 hours between oil changes and USDA-approved food-grade oil in the compression end.
• Mobility: Built with 10" pneumatic tires for rough terrain and an integrated bottom skid plate for stair climbing.
• Noise Level: Quiet operation running below 70 dB(A) at 3 feet.
• Dimensions & Weight: Measures 46"L x 24"W x 22"H and weighs 150 lbs.
