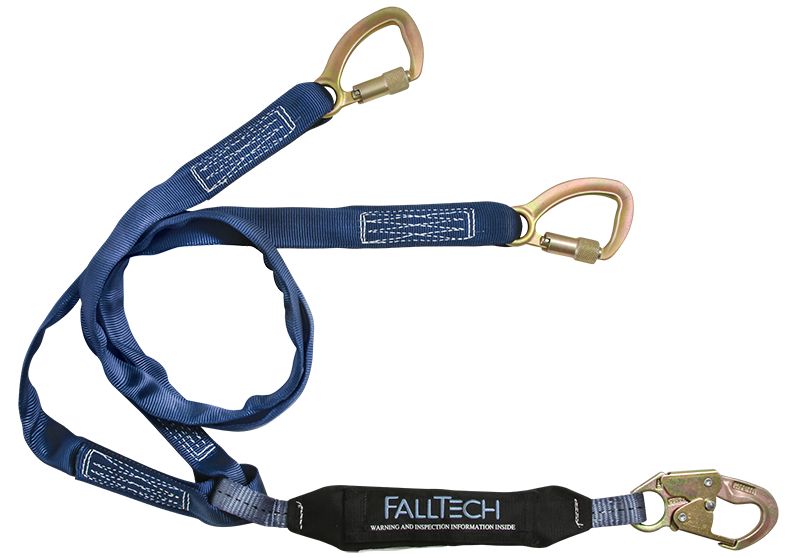

6' WrapTech® Energy Absorbing Lanyard, Double-leg with Steel 5k Tie-back Carabiners
Features
• Jacketed double-layer polyester webbing provides tie-back abrasion resistance
• Energy absorber features ViewPack® cover with inspection window and WrapPack label protection.
• Wrap-around anchorage connection eliminates the need for a separate tie-off anchor point
• Includes alloy steel snap hook for harness attachment and 5k carabiners for tie-back anchorage
• Double-leg design facilitates 100% tie-off
• Complies with ANSI Z359.13-2013
Material Specifications
WebbingPolyester; 5,000 lb min. static strength
Energy AbsorberPolyester tear-away
Snap HookPlated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
CarabinersPlated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength
Performance Specifications
Static Strength5,000 lb min.
ANSI Lanyard Class6' free fall
Max. Arrest Distance48"
Avg. Arrest Force900 lb
Max. Arrest Force1,800 lb
ANSI User Capacity130 to 310 lb max.
OSHA User Capacity130 to 310 lb max.
