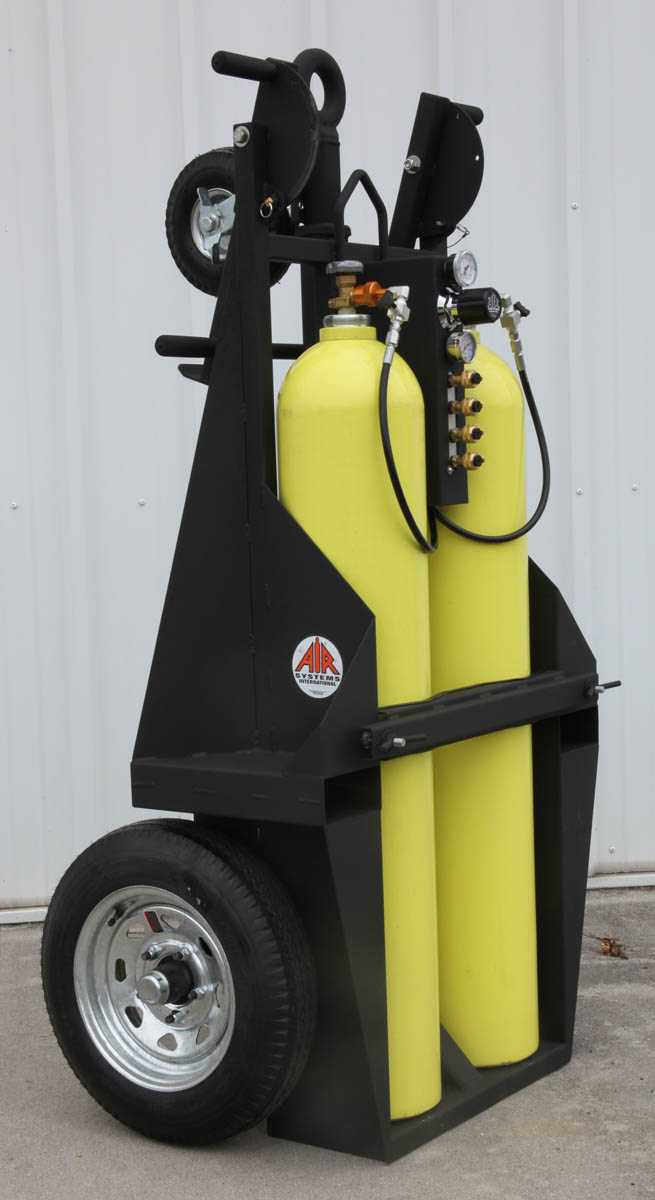

The Breathing Air Transporter™ (BAT) is a highly mobile breathing air cart holds two large air cylinders and contains a 4-outlet breathing air manifold. The BAT can be towed or used as a mobile push cart in several configurations. Fork lift guides and a center lift eye are included for easy transportation to where you need it.
Specifications:
• Steel frame with black powder coat paint
• 4 outlet manifold with regulator, relief valve, low pressure whistle alarm, and pressure gauges
• Universal CGA-346/CGA-347 wrench tight connectors allow use of 2400 psi or 4500 psi cylinders
• Pneumatic Tires: Rear Twin 21" tires - highway rated Front Swivel caster 10" tires rated for 350 lbs. (stowed when towing on highway)
• Lunette ring for Pintle Hitch connections
• Fork lift guides
• Center Lift Eye - load certified
• Four padded handles for lifting and pushing
• Lift Required for horizontal to vertical mode: two persons using 45 lbs lift
• Trailer Dimensions: Length 94", Height 25", Width 36"
• Weight: Empty 262 lbs., With two 444 cf air aylinders 570 lbs.
• Locking bar with wing nuts to secure cylinders
AC-300 Breathing Air Cylinder, 300 cf CGA-346, 2400 psi, steel, DOT/TC approved ,Breathing Air Cylinder - 300 cf CGA-346, 2400 psi, steel, DOT/TC approved, 300 cf, 2216 psi, CGA-346 Valve, Steel, DOT/TC Approved, Cap Included, Ships Empty.

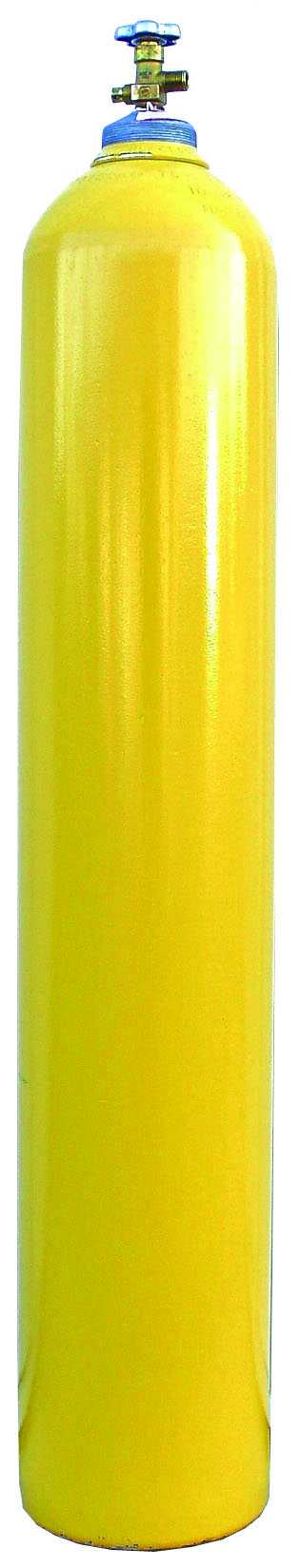

AC-444 Breathing Air Cylinder, 444 cf CGA-347, 4500 psi, steel, DOT/TC/ISO/UN approved ,Breathing Air Cylinder - 444 CF 4500 psi ISO/UN Steel Air Cylinder CGA-347 Valve Installed, 444 cf, 4500 psi, CGA-347 Valve, Steel, DOT/TC/ISO/UN Approved, Cap Included, Ships Empty.
AC-87 Breathing Air Cylinder, 87 cf CGA-347, 4500 psi, fully wrapped carbon fiber, DOT/TC approved ,Breathing Air Cylinder - 87 CF 4500 psi DOT Carbon Fiber Air Cylinder CGA-347 Valve Installed, 87 cf, 4500 psi, CGA-347 Valve, Fully Wrapped Carbon Fiber, DOT/TC Approved, Cap Included, Ships Empty.
