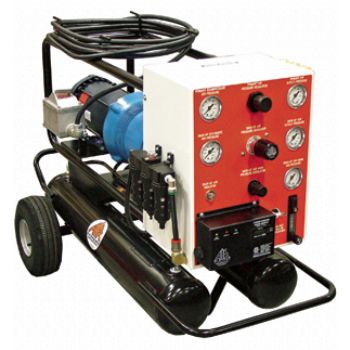

The Air Systems TA3-AXAF Explosion-Proof Auto-Air Compressor System is an all-in-one, hazardous-location breathing air cart designed to supply safe air for up to three workers using pressure-demand airline respirators.
Key Features
• Explosion-Proof Design: Built with an explosion-proof 230/460 VAC, 3-phase electric motor and switch for safe operation in Class 1, Division 1, Groups C and D environments.
• Automatic Back-Up Air: Features a fully automatic reserve air system (up to 4500 PSI capability) that switches to backup air via a pneumatic visual indicator and audible alarm if the primary compressor fails.
• Grade-D Filtration: Includes a built-in 3-stage Grade-D filtration system with a CSA-approved, intrinsically safe carbon monoxide (CO) monitor.
• Twin-Air Tank Design: ASME-coded tank configuration cools the compressed air output before filtration.
• Portability: Mounted on a robust steel frame with 10-inch pneumatic tires and space to hold one 4500 PSI backup SCBA cylinder.
•
Specifications
• Capacity: Up to 3 workers (pressure-demand respirators only)
• Output Pressure: 110–125 psi
• Flow Capacity: 48 CFM
• Power Cord: 25-foot cord (supplied without plug, user-wired per NEC requirements)
• Weight: Approx. 185 lbs
